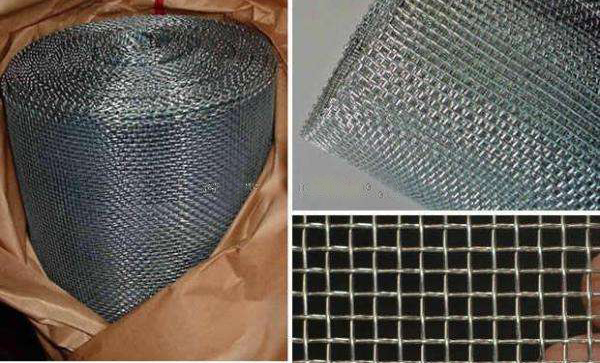

Stainless steel woven square wire mesh is widely used in industry and construction, such as sand filters, liquid filters, gas filters, which can also be used for mechanical attachment security, ordina
WEAVING TYPES
The Plain Weave mesh is the most commonly used and simplest wire cloth. Each warp wire (wire running-parallel to length of cloth) passes alternately over and under the wires running traversely through the cloth (fill or shoot wires) at 90 degree angles. It has an extremely wide range of applications.
The Twilled Weave is produced by passing each fill wire alternately over and under two warp wires. The pattern is staggered on successive warp wires, giving the appearance of parallel diagonal lines. This weave allows the use of proportionately heavier wires in a particular mesh count (number of openings per lineal inch) than is possible in plain weave. This cloth has a wide application capable of supporting greater loads and finer filtrations.
